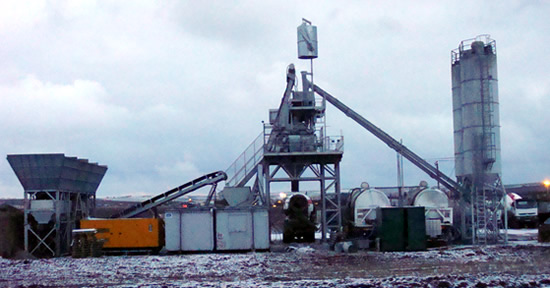

Batching plant ORU Logic 4 bin wet batching plant

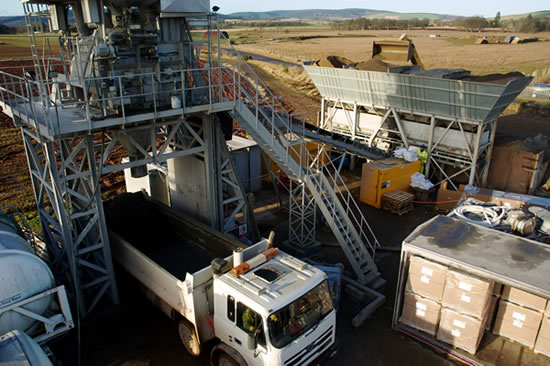

Plant output of 110 cubic metres per hour loaded directly into truck mixer
- 4 x Aggregate hoppers each with a capacity of 20 cubic metres, each hopper with 2 discharge gates to facilitate fast weighing
- Mounted over 2 x weighing conveyors each with 4 load cells to enable dual weighing
- Discharging into a central loading conveyor belt with a loading capacity of 320 cubic metres of material per hour.
- Conveyor belt feeding 5000 litre capacity skip hoist with a rising speed of 26.8 metres per minute and a descending speed of 54 metres per minute
- Skip hoist feeding twin shaft mixer model MB5000 / 3350 with an output of 3.33 cubic metres per batch
- Mixer mounted on support trestle with a discharge height 4100mm
- Structure with relevant access walkways for maintenance
- 2000 Kg capacity cement weigh hopper
- 1000 Kg Capacity water weigh hopper
- Admixture System with 3 lines at 45 litres per minute
- Plant Supplied complete with air compressor
- 60 tonne capacity silo with all relevant EPA equipment including filters, silo protection system and discharge screw conveyor
